Product Description

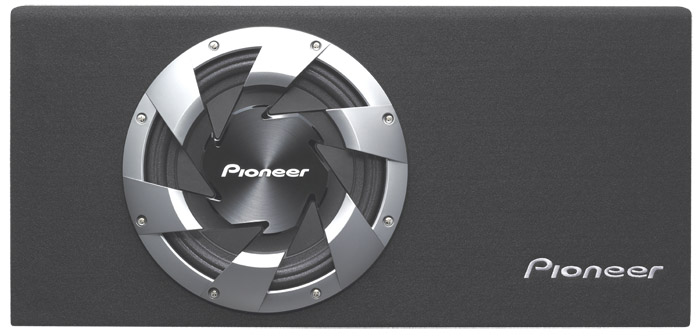

Pioneer has created the TS-SWX310 “ready-to-play” subwoofer enclosure pre-loaded with one 12-inch TS-SW301 subwoofer. The slim wedge-shaped box is built to the optimal specifications of the subwoofer and is perfect for applications behind the seats of many pick-up trucks, SUVs or other vehicles where space is at a premium. The enclosure is made of reinforced medium density fiberboard (MDF), wrapped in high-quality black carpet with an embroidered Pioneer logo.

Features

Specifications

Air Suspension System: ~In order to create a subwoofer that is three and a quarter inches deep, Pioneer had to develop revolutionary subwoofer technology. A traditional subwoofer uses the spider design to keep the voice coil of the speaker aligned while it moves. This type of set-up can become soft over time degrading the subwoofer’s performance. Pioneer created a patent-pending air suspension system that locks air between a main cone and a drive cone. The cones move together in unison, with the locked-in air behaving like a spring. The dual-cone structure is a spider-less design that maintains better sound linearity, and reliability even after many of hours of hard use. The pressure from the trapped air results in a consistent bass response across a wide frequency range. The result is a tight, precise movement with powerful and clean bass output.

3-Layer Interwoven Radial Surround: ~The TS-SWX310 incorporates an innovative woven cloth reinforced radial urethane surround for improved power handling, reduced distortion, improved durability, and louder, more controlled bass. The surround is constructed of three layers — two of urethane and one of interwoven cloth. The interwoven cloth distributes strength throughout the surround material and improving its high power capability. The result is an extremely durable and resilient surround that resists puckering, even under intense power conditions. Unlike traditional surrounds that use a single arch shape design, the Pioneer Shallow Subwoofer utilizes a patent-pending M-shape surround that provides superior sound linearity.

M-Shaped Surround: ~The M-shape surround also has a lower height, and a lower fc or tuning frequency. The lower fc threshold translates to better and longer performance at lower frequencies.

Angled Push Terminals: ~Traditional subwoofer terminals are mounted horizontally or vertically. These mounts force wires to be bent to fit which can be difficult if low-gauge high performance wires are used. The Pioneer shallow subwoofer’s patent-pending, angled push terminals make it easy to connect speaker wires. The straighter connection saves space and makes installation easier.

Fin-Shaped Basket: ~Traditional subwoofers push air downward. This creates a “loading effect” or area of pressure underneath the speaker which hampers performance and responsiveness. The rear of the powerful and slim Pioneer shallow subwoofer is designed with specially-shaped fins that channel the airflow sideways instead of downward. Air is continuously pushed in a circular motion, eliminating the “loading effect” or unwanted pressure of air behind the c
