Product Description

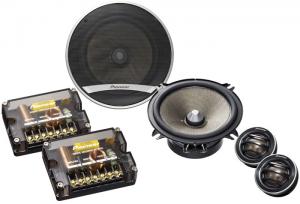

To create D-series speakers, Pioneer developed the industry's first basalt fiber made from natural rock interwoven with aramid fiber. Used in the surface layer, this aramid/basalt fiber material is highly rigid and better absorbent, enhancing stability and maintaining integrity throughout a wide temperature range. D-series speakers feature an exclusive rear chamber tweeter enclosure that people first used in Pioneer's famed PRS speakers. It extends mid-range frequency for improved vocal imaging and staging. Features include Dual-Layer IMX (Injection Molded Matrix) Aramid/Basalt Fiber Composite Cone, High-Quality Crossover, 1-1/8" Soft Dome Tweeter with Magnetic Fluid and Neodymium Magnet, Full Depth Basket for Rich Bass Response, 35 Watts nominal, and more.
Features
Specifications
Dual-Layer IMX (Injection Molded Matrix) Aramid/Basalt Fiber Composite Cone: ~To create new D-Series speakers, Pioneer developed the industry’s first basalt fiber made from natural rock interwoven with aramid fiber. Used in the surface layer, this Aramid/Basalt Fiber material is highly rigid and better absorbent, enhancing stability and maintaining integrity throughout a wide temperature range. Rear Chamber Tweeter Enclosure: ~D-Series speakers feature an exclusive rear chamber tweeter enclosure that we first used in our famed PRS speakers. It extends mid-range frequency for improved vocal imaging and staging.High-Quality Crossover: ~The built-in -12dB/Octave HPF and LPF crossover improves the transition from mid to high frequency, for a smoother mid-range to tweeter response. Audiophile-grade capacitors and inductors are used, and all components are encased in a clear acrylic cover for protection.Smooth Off-Axis Response: ~Optimal Choice of Tweeter Diaphragm Shapes Lower Crossover Frequency~Large-Sized Tweeter Diaphragm (1-1/8" diameter) Rear Chamber Light Weight Soft-Dome Diaphragm High-Quality Passive Crossover Network (Woofer, LPF: -6 dB; Tweeter, HPF: -12 dB)#Low Distortion~Thick Woofer Basket Large-Sized Woofer Magnet Dual-Layer IMX (Injection Molded Matrix) Aramid/Basalt Fiber Composite Cone #Detailed Specifications~Woofer Cone Material: Dual-Layer IMX Aramid/Basalt Fiber Composite ConeSurround: Butyl Rubber for Smoother ResponseVoice Coil Bobbin: Glass-ImideVoice Coil Wire: OFC CopperDamper: ConexCopper Ring: OFC CopperTweeter: 1-1/8" Soft Dome with Magnetic Fluid and Neodymium MagnetRear Chamber Tweeter Design: Rear Chamber Design for Lower Crossover FrequencyBasket Design: Full Depth Basket for Rich Bass ResponseBuilt-in Passive Crossover: Audiophile-Grade Outboard with -12dB/Oct. LPF/HPFSpeaker Grille: IncludedCustom-Fit Basket: 6x8 Adapter IncludedSpecial: Surface (Angled), Flush and Invisible Tweeter MountingWatts MAX. Music Power: 180 WattsWatts Nominal Power Handling: 35 WattsFrequency Response: 35 Hz to 33 kHzSensitivity (1W/1m): 88 dBOhm Rating: 4Mounting Depth: 2-1/4 inchCut-out Dimensions: 4-3/4 inch#
